01 / 05
01
Overview
You produce premium products on the VEMAG FM250 Forming Machine, ASV811 Cutting Device or the BF255 Burger Former and want to automatically deposit your products on paper with variable length and width? Do you need a flexible and cost-saving solution? Do you prefer compact units that take up little space?
Rely on the automatic VEMAG paper interleaver and benefit from extremely high cutting performance and extremely safe and economical operation.

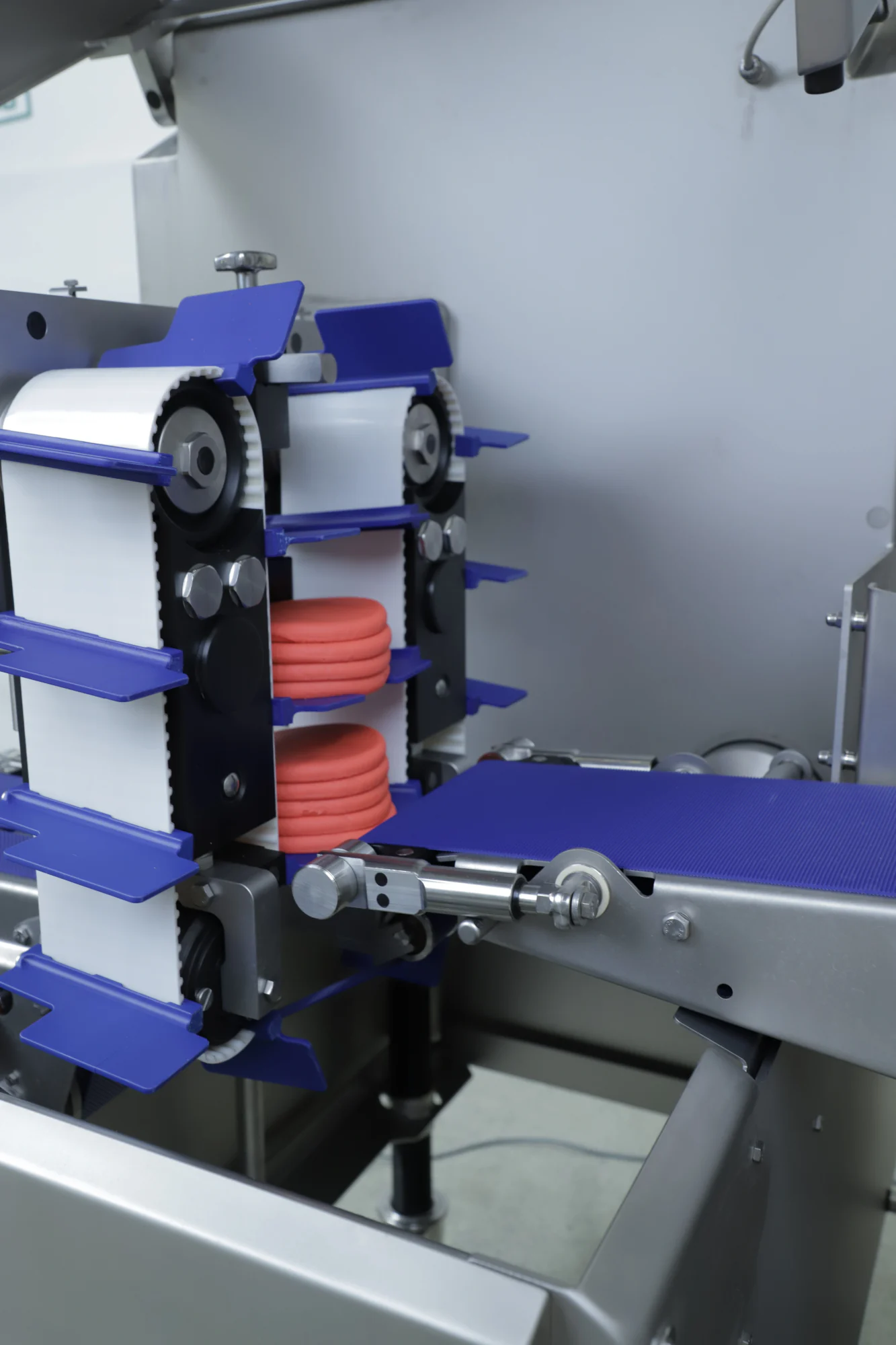

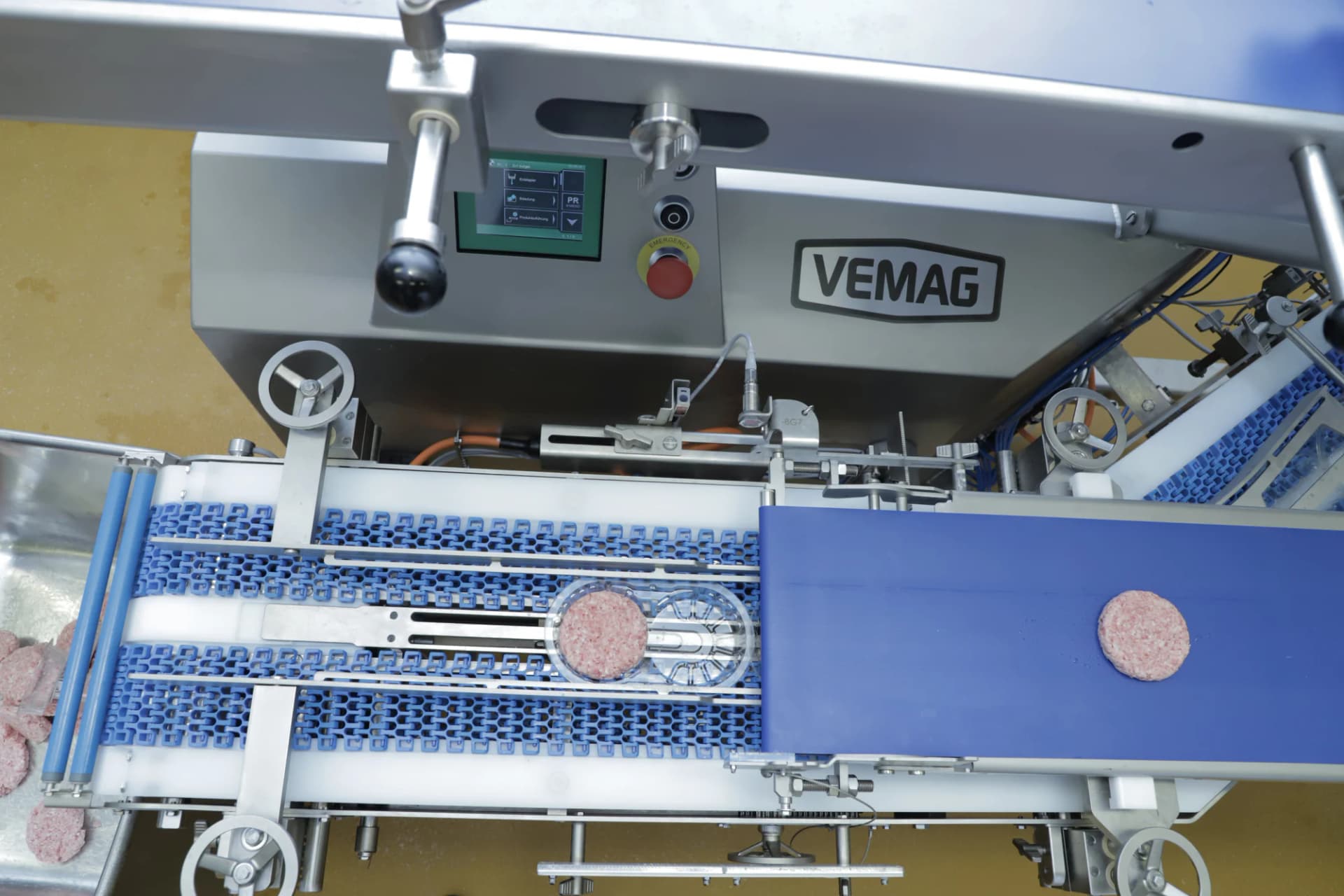

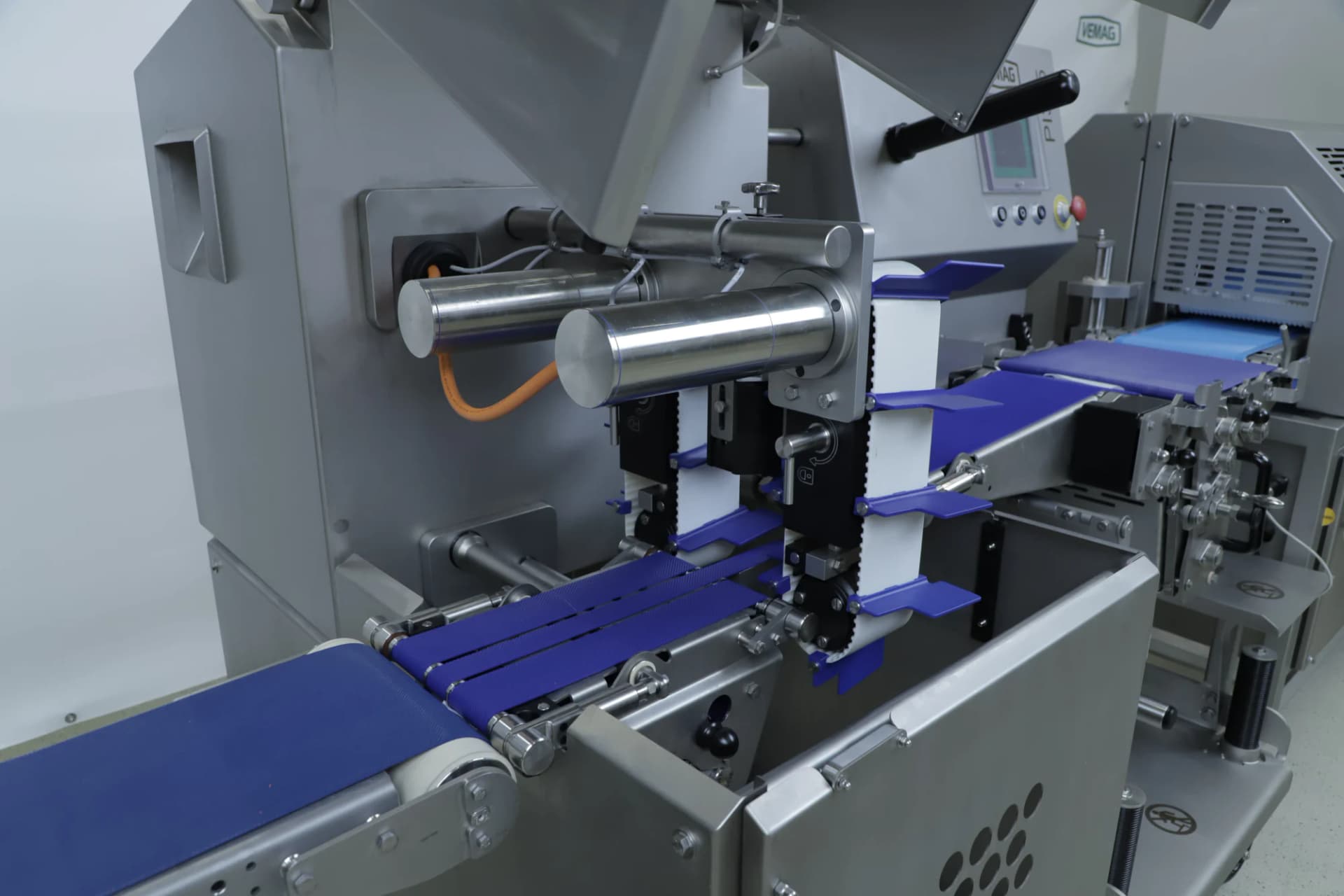

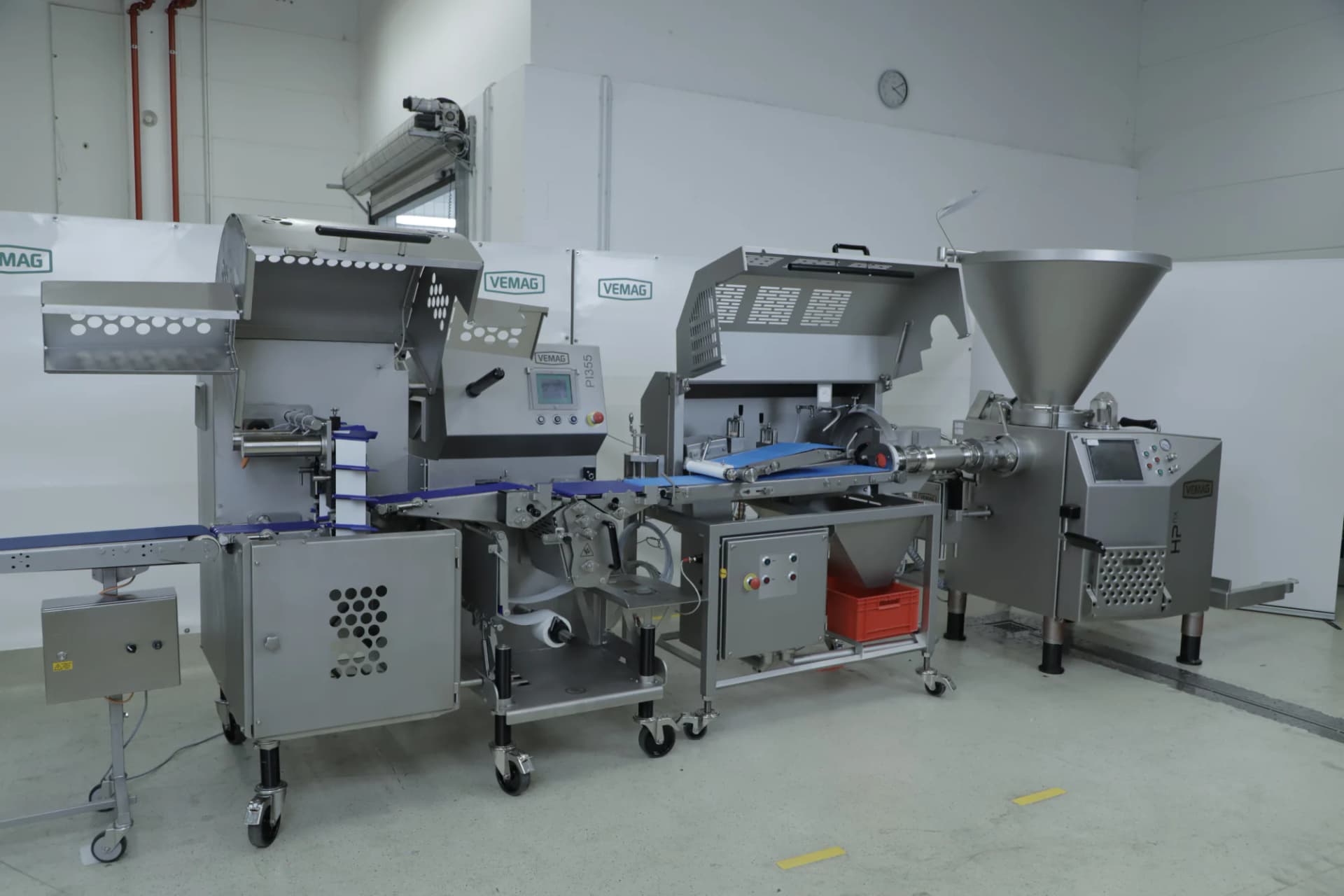

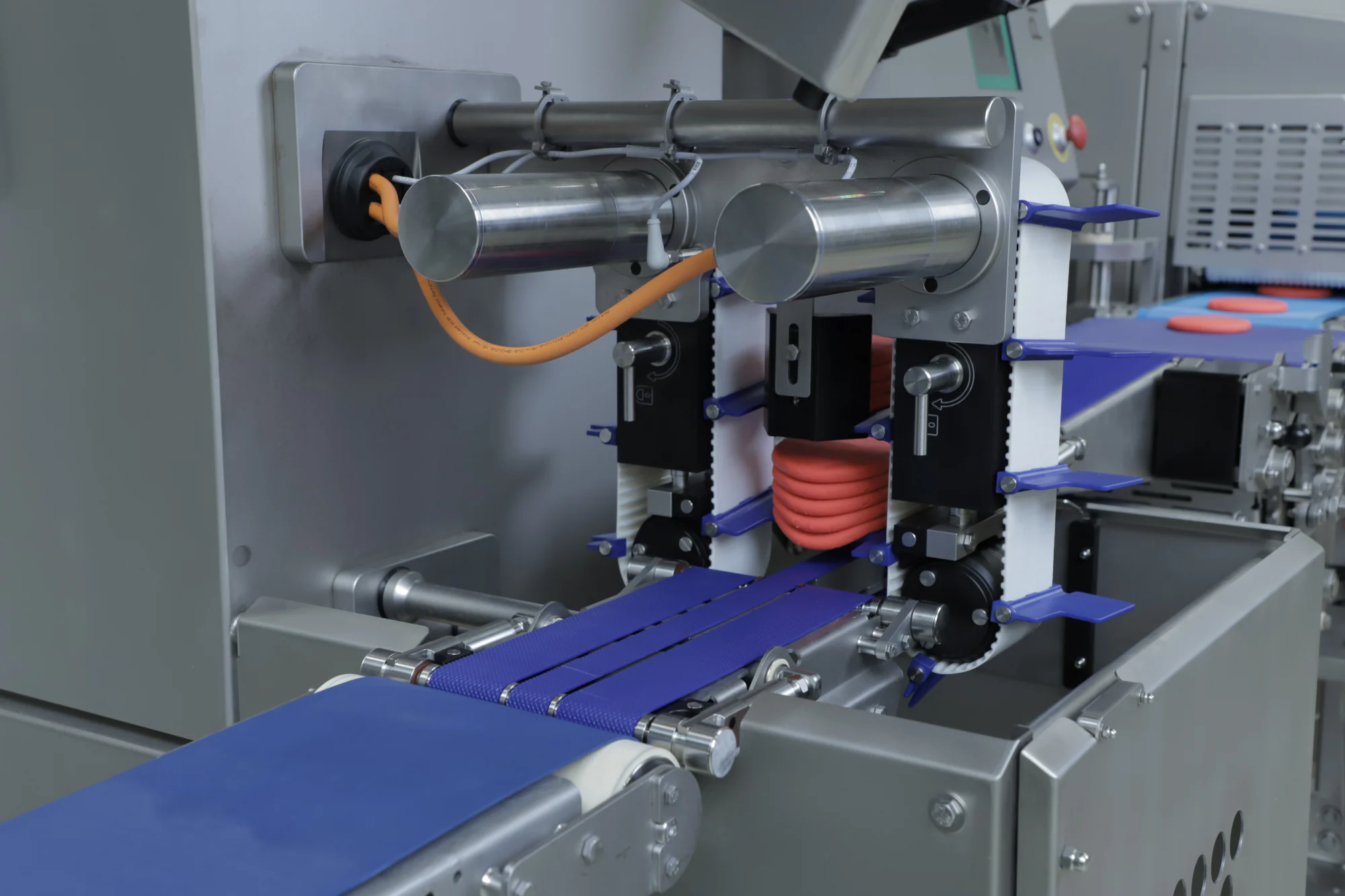

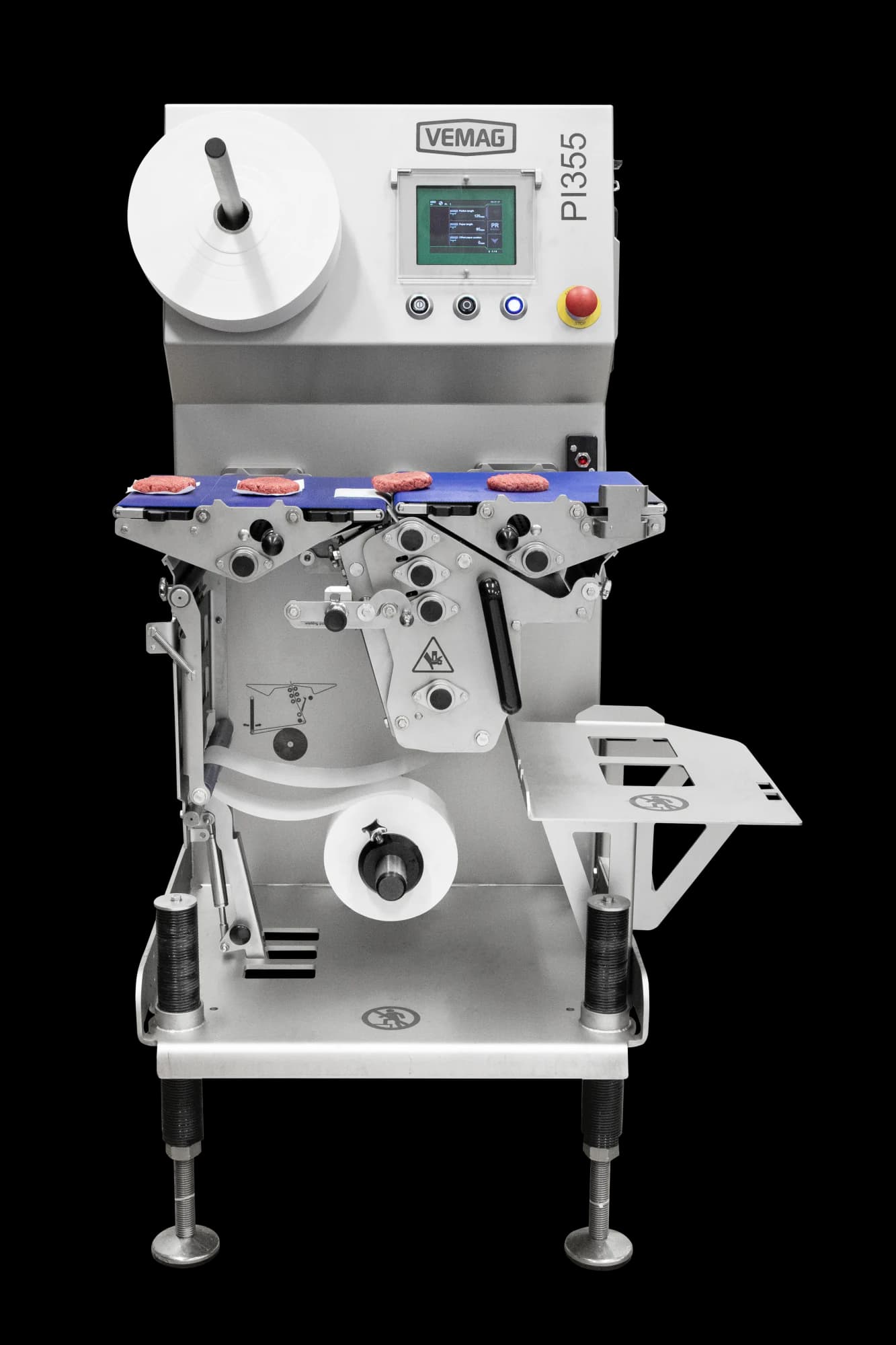

The Paper Interleaver PI355 is the optimal accessory for the VEMAG FM250 Forming Machine, the ASV811 Cutting Device and the BF255 Burger Former. Due to the compact design, the forming line is only slightly extended.
02
Features
- Interleaving material paper and plastic foil
03
Video
04
Technical data
| Design | single and double lane |
|---|---|
| Output | single lane – 300 port/min’; Double lane – 600 port/min |
| Patty size | max Ø 300mm (single lane Max Ø150mm (double lane) |
| Min height | 4.5 mm |
| Max width | 140 mm double / 300 mm single |
| Length | 55 mm – 150 mm |
| Operating noise | low noise level: 71 dB |
| Operating temperature | 0°C – to 30°C |
| Roll core diameters | 50 mm and 75 mm |
| Roll diameter | max 360 mm |
Contact our team to confirm the specification for your application.
