Processing solutions
LG336
Fully automatic grouping of fresh sausages.
01 / 02
01
Overview

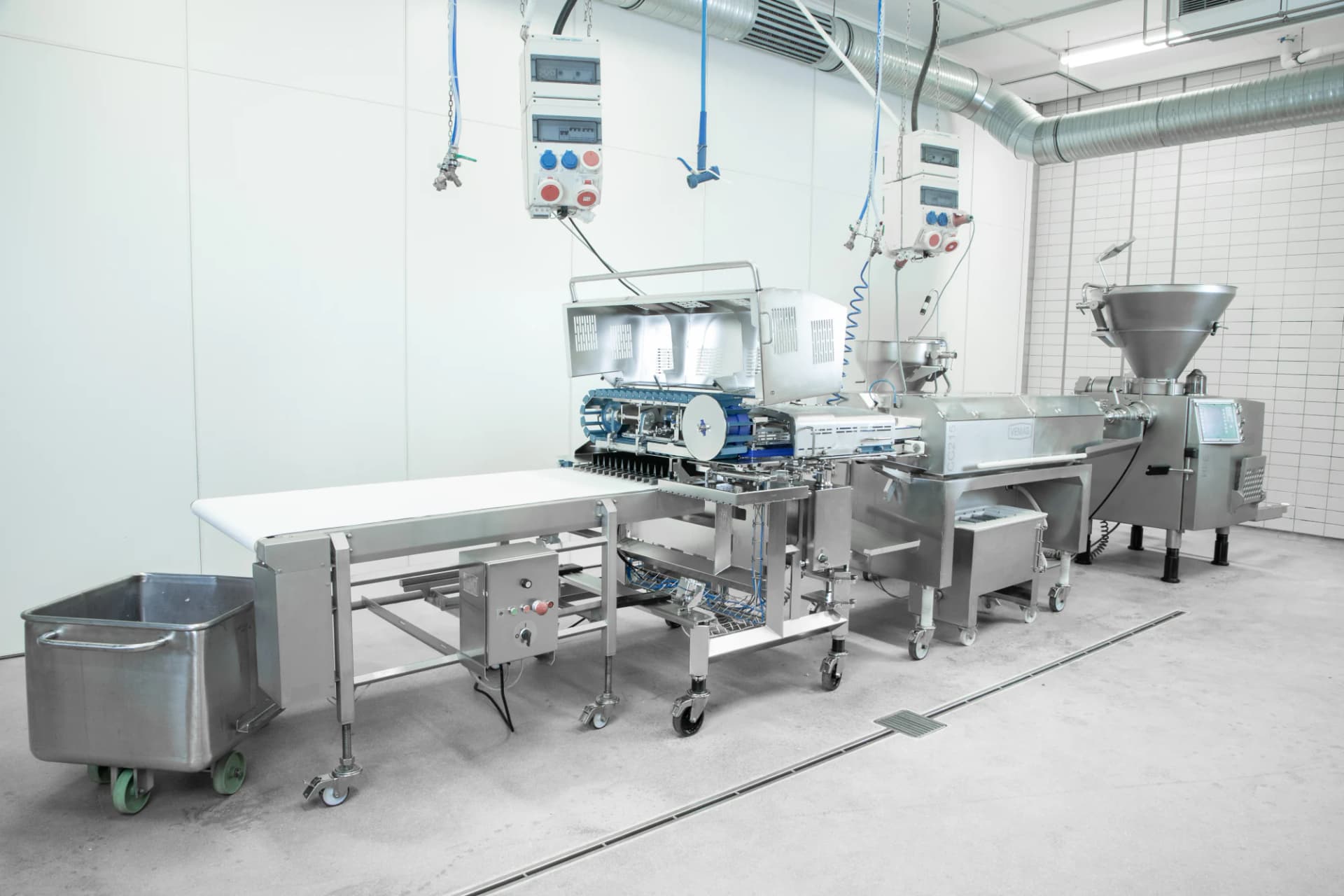

Efficient group and depositing module for sausages in alginate, natural or collagen casing. For depositing groups of sausages on conveyor belts such as freezer or oven belts. Mechanically linked to the sausage line, the LG336 forms groups of sausages, which are then deposited onto a conveyor belt. First, last and incorrect ports (uncut, burst) are rejected.
The number of sausages to be deposited in a row can be reselected and depends on the length of the group belt and the pitch of the carrier as well as on the width of the customer’s depositing belt. The feeding, grouping and depositing module is suitable for depositing on belts from 600 mm to 1200 mm width.
02
Video
03
Technical data
| Compressed air | Necessary |
|---|---|
| Caliber | 18 - 36 mm |
| Types of casing | Alginate, natural or collagen casing |
| Width of the deposit belt (at the customer's site) | 600 mm up to 1,200 mm |
| Two machine models available | 600 mm and 1,200 mm width |
| Product length | 80 - 180 mm |
| Output capacity | |
| For alginate in combination with a CC215 | max. 600 ppm |
| For natural casings in combination with a LPG208 + TM203 | max. 300 ppm |
| For collagen casings in combination with a LPG209 + TM203 | max. 600 ppm (All portions /min depending on caliber, length and product sensitivity) |
Contact our team to confirm the specification for your application.
04
Industries and applications
Industries
Applications
