01
Overview

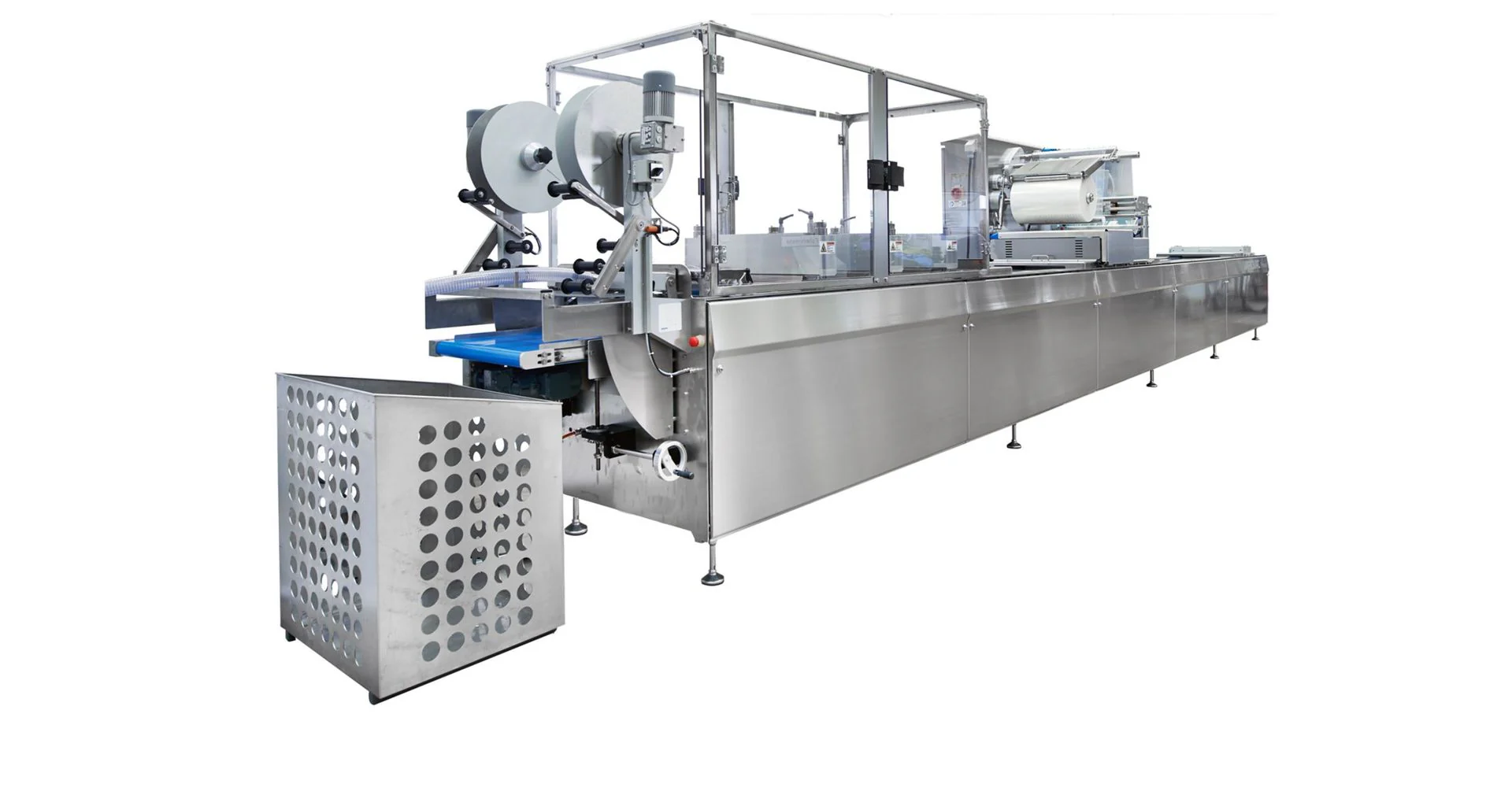

With the VARIOVAC Primus, we have the right concept for all areas and for every application and you have the right packaging. Thanks to our uncompromising, continuous further development of machine technology, it has established itself on the world market as one of the most reliable deep-drawing machines since its market introduction in 2013.
The highly developed VARIOVAC RapidAirSystem facilitates the perfect forming of the soft and hard films and a reliable sealing of the packaging with up to 20 cycles per minute. Thanks to the VARIOVAC High Speed IPC, the process times can be depicted in real time.
02
Technical data
| Film width | 230 – 560 mm |
|---|---|
| Draw-off length | 100 – 700 mm |
| Packaging depth | up to 135 mm |
| Film strength | Bottom film up to 550 µ |
| Frame length | different module lengths of 5.0 to 12 m |
| High-performance control | IPC, swivel-mounted 12.1” touchscreen |
| Packaging output | up to 20 cycles / min. |
| Packaging types | Sealing, Vacuum, MAP, Skin, Steam, Shrink |
| Cooling | integrated heat exchanger without consumption of water |
| Compressed air | min. 6 bar: the consumption is dependent on the machine configuration and equipment |
| Electrical voltage | 3 x 230 V N/PE / 3 x 400 V N/PE / 50/60 Hz |
Contact our team to confirm the specification for your application.
03
Industries and applications
Request a quote for the Primus
Tell us about your application and requirements. This machine is already attached to your enquiry.
Prefer to talk directly?
- Australia(07) 3829 3868
- New Zealand+64 9 415 0137
- Salessales@vemag.com.au
Tell us about your application
Add your contact details and any production, capacity or configuration requirements you already know.
Quote request
Enquiring about: Primus
Thermoformers & packaging
