AE 130-3

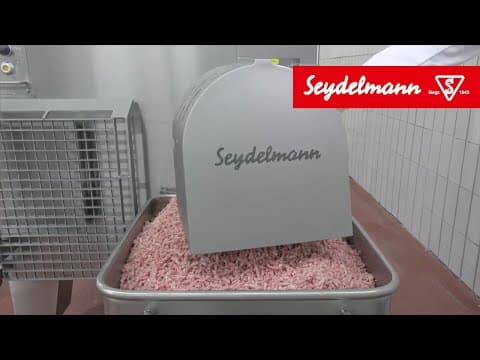

The Seydelmann Automatic Grinder is a powerful and robust machine that meets the highest quality demands of the end product under optimal hygienic conditions.

The machine has a closed machine frame. Therefore all technical parts are integrated in the machine. Motors are insulated against humidity and totally closed. The waterproof panel box is built into the machine. All surfaces are rounded, polished with high precision and designed with a slope, so that water can drain easily. Embedded covers in the stainless steel machine frame and the closed bottom prevent water from entering the machine or dirt from sticking to the openings. The worm housing, the worm as well as the union nut or bayonet locking are also made of solid stainless steel. The worm housing is also equipped with a trapezoidal thread which endures the toughest use on a long term basis.

Specially suitable for grinding fresh, frozen and cooked meat as well as liver, spinach and other food products from -18 °C to 85 °C (0 °F to 185 °F).

Thanks to the 2-speed working worm and the wide conical feeding worm of the AE 130-3, fresh meat and slightly frozen meat, frozen pieces as well as cooked products, liver, spinach, etc. can be processed. The conical feeding worm takes up large pieces of meat and safely transports them to the working worm with- out forming bridges. The safety guard with switch-off contact makes it impossible to place a hand into the running feeding worm. The result of the fast and powerful grinding of the machine is a clear cut-image and a very high throughput for each hole plate size and each material. To improve the quality of the final product, a separating set is available as optional equipment.
