01
Overview

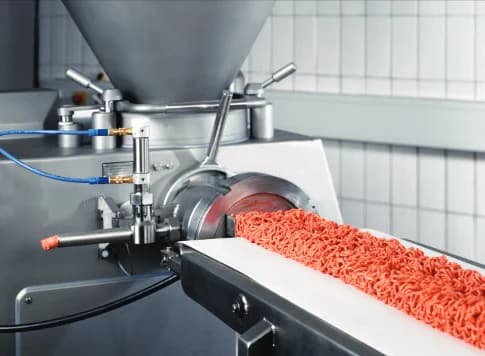

With the sausage grinder 980, VEMAG presents new approaches in grinding and separation technologies. Integrated processing makes it possible to grind the product to final particle size and, if required, simultaneously separate particles of bone and sinew immediately when filling or twist-linking. Filling machines with a double screw can be upgraded – due to the attachment design – to a full production line for the economic production of cooked and raw sausage.
02
Technical data
| Hole plate diameter | 100 mm |
|---|---|
| Can be combined with filling machines | HP series, ROBOT 500 (depending on product) |
| Sausage grinder output | up to 4 tons an hour (depending on product) |
| Separation function | to be switched in optionally |

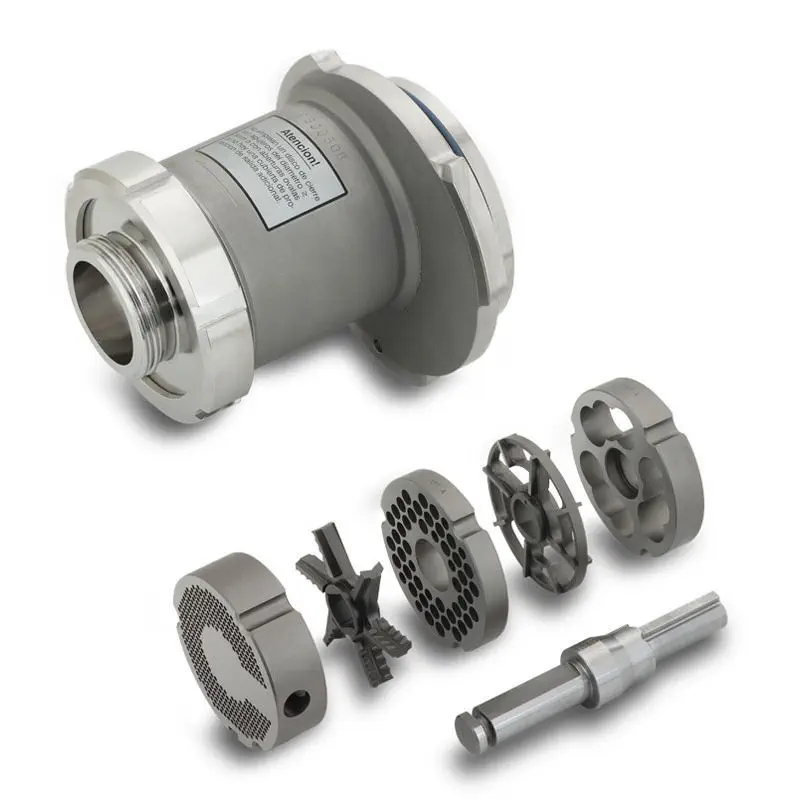

| Blade set configurations | |
| Sausage grinder without separation | 3-part (pre-breaker, blade, final hole plate), 5-part (pre-breaker, blade 1, intermediate plate, blade 2, final hole plate) |
| Sausage grinder with separation (optional) | 3-part (pre-breaker, separation blade, separation plate), 5-part (pre-breaker, blade, intermediate plate, separation blade, separation plate) |
| Service life of cutting tools | depending on the product, application and care of the blade set |
Contact our team to confirm the specification for your application.
03
Industries and applications
Request a quote for the Grinder 980
Tell us about your application and requirements. This machine is already attached to your enquiry.
Prefer to talk directly?
- Australia(07) 3829 3868
- New Zealand+64 9 415 0137
- Salessales@vemag.com.au
Tell us about your application
Add your contact details and any production, capacity or configuration requirements you already know.
Quote request
Enquiring about: Grinder 980
Attachments & accessories
