Vemag

PI355

Solution:

Application:

Processing Solutions

High-Efficiency Cutter

Industry/Categories

Need a precise solution? Speak with a Vemag specialist to tailor the perfect food processing line.

Description

You produce premium products on the VEMAG FM250 Forming Machine, ASV811 Cutting Device or the BF255 Burger Former and want to automatically deposit your products on paper with variable length and width? Do you need a flexible and cost-saving solution? Do you prefer compact units that take up little space?
Rely on the automatic VEMAG paper interleaver and bene t from extremely high cutting performance and extremely safe and economical operation.

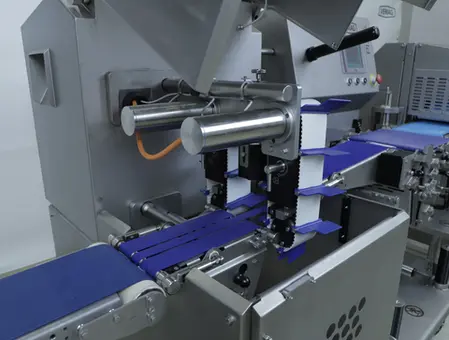

The Paper Interleaver PI355 is the optimal accessory for the VEMAG FM250 Forming Machine, the ASV811 Cutting Device and the BF255 Burger Former. Due to the compact design, the forming line is only slightly extended.

Features / Technical Data

  • Design:   single and double lane

  • Output:   single lane – 300 port/min’

  • Double lane – 600 port/min

  • Patty size  max Ø 300mm (single lane

  • Max Ø150mm (double lane)

  • Min height 4.5 mm

  • Interleaving material paper and plastic foil

  • Max width 140 mm double / 300 mm single

  • Length 55 mm – 150 mm

  • Operating noise: low noise level: 71 dB

  • Operating temperature 0°C – to 30°C

  • Roll core diameters 50 mm and 75 mm

  • Roll diameter  max 360 mm
