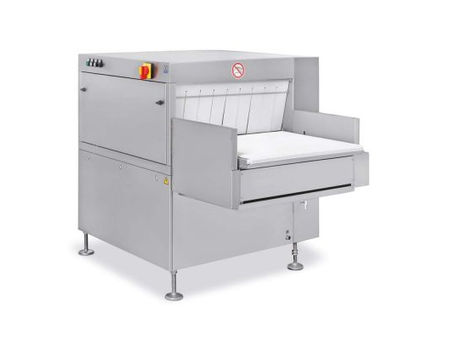

BL 15 Drying Tunnel

Solution:

Application:

Packaging Solutions

High-Efficiency Cutter

Need a precise solution? Speak with a Vemag specialist to tailor the perfect food processing line.

Description

Rugged stainless steel construction for maximum durability
Stand-by function for blower and drive if there are no products
Run-through function for products without drying function
Adjustment of the run-through speed
Touchscreen for easy operation

Features / Technical Data

Top air nozzles: 2 sensor-controlled nozzles follow the contours of the product
Air nozzle bottom: 1 rigid nozzle at the bottom
Volume of side-channel compressor: 1400 m3/h
Throughput width: 860 mm
Max. throughput height: 300 mmBelt speed: 0.04 – 0.12 m/sec.
Matching shrink solution: Shrink tanks (AT 8/15), cooling tanks (AC 8/15) and shrink tunnel AS660
